Converting a analog joystick to digital

Last Updated or created 2023-03-29

When you need a large digital joystick, but only got an analog one. You can use below code to make the joystick act as a digital one.

I’ve played with analog joysticks on digital pins also, it can be done. But it can be buggy, and needs extra code.

Note: The joystick pins are marked with 5V, but when you use a Arduino which can only read till 3.3V using its ADC (Analog Digital Convertors), you can get some weird readings.
When moving down and left is reads okay, but up and right react as being connected together!
Just try it with 3.3V or use a resistor.

Above shows a ESP32, but below code has Arduino Nano pin names, change accordingly.


The code gives you a direction only once, you will need to move the stick to the middle position first and then move again.

Below gave me readings between 0 and 1024 (10 bits)
Hence the between 350 and 650 for the middle position.

Most will give you a reading between 0 and 4096.

Want to set the resolution yourself?

  analogReadResolution(10); // 10 bits
int val1 =0;
int val2 =0;

void setup()

void loop()
    int sensorValue1 = analogRead(A0);
    int sensorValue2 = analogRead(A1);

    if (sensorValue1 > 650){
      if (val1 == 0){
      Serial.println(" ");
    else if (sensorValue1 < 350){
      if (val1 == 0){
      Serial.println(" ");
    else if (sensorValue2 > 350 && sensorValue2 < 650){
    if (sensorValue2 > 650){
      if (val2 == 0){
      Serial.println(" ");
    else if (sensorValue2 < 350){
      if (val2 == 0){
      Serial.println(" ");
    else if (sensorValue2 > 350 && sensorValue2 < 650){


I asked ChatGPT to write code for a Crack the Code game.

Last Updated or created 2023-03-29

The Game

elcome to Crack the Code!
The code has 4 digits. Each digit is between 0 and 9.
You have 10 tries to guess the code.
After each guess, you will be told how many digits you got correct and how many were misplaced.
Good luck!
Enter your guess: 1234
Guess 1: 1234 - 0 correct, 0 misplaced
Enter your guess: 5678
Guess 2: 5678 - 2 correct, 1 misplaced
Enter your guess: 5689
Guess 3: 5689 - 1 correct, 2 misplaced
Enter your guess: 9688
Guess 4: 9688 - 1 correct, 2 misplaced
Sorry, you did not crack the code. The code was 5568.

Generated python code

import random

def generate_code():
    code = ""
    for i in range(4):
        code += str(random.randint(0, 9))
    return code

def check_guess(code, guess):
    correct_digits = 0
    misplaced_digits = 0
    for i in range(4):
        if guess[i] == code[i]:
            correct_digits += 1
        elif guess[i] in code:
            misplaced_digits += 1
    return (correct_digits, misplaced_digits)

def play_game():
    print("Welcome to Crack the Code!")
    print("The code has 4 digits. Each digit is between 0 and 9.")
    print("You have 10 tries to guess the code.")
    print("After each guess, you will be told how many digits you got correct and how many were misplaced.")
    print("Good luck!")
    code = generate_code()
    num_guesses = 0
    while num_guesses < 10:
        guess = input("Enter your guess: ")
        if len(guess) != 4 or not guess.isdigit():
            print("Invalid input. Please enter a 4-digit number.")
        num_guesses += 1
        correct, misplaced = check_guess(code, guess)
        print(f"Guess {num_guesses}: {guess} - {correct} correct, {misplaced} misplaced")
        if correct == 4:
            print("Congratulations! You cracked the code!")
    print(f"Sorry, you did not crack the code. The code was {code}.")


After this i let the AI made some changes, which kinda worked.
Scary nevertheless

Easy to setup switches puzzle with one pin

Last Updated or created 2023-03-28

I’ve posted a switches puzzle here.

I was thinking of a easier setup which is “static”.
Mine has a 65535 possibility setup, but you can make an easy puzzle with below setup.

Set D3 to
pinMode(D3, INPUT_PULLUP);

Notice that I’ve placed the wires for some switches at the bottom, so these switches need to be set in the other direction “off” than the others.
Only 7 switches matter, you could use all of them.
When using a switch with only two connections, place the switch upside-down. Now OFF is switch with ON.


is the correct setting

Some Arduino hints/tips/workarounds

Last Updated or created 2023-03-28

These are last weeks findings, I will add to this page when I discover other useful things.


  • always include “Arduino.h”
  • Order of functions matter! (Not with Arduino IDE)
  • setup serial monitor speed in platformio.ini
    monitor_speed = 115200

Arduino IDE

  • Build error “panic: runtime error: index out of range [3] with length 3” or length 4.
    Code probably correct, build with another board and build+upload with correct board as workaround.


  • Using a SSD1306 with other pins?
    For example with Adafruit_SSD1306.h
    in setup(){ place

Infrared Sending Receiving

Last Updated or created 2023-03-26

I’ve build a IR Blaster in the past and tested IR with EspEasy Dev.
I’m not happy with my Harmony Hub. Not so much control as i like to have.

So now OpenMqttGateway with IR.

I’ve installed platformio in the past.
Not really a fan of visual-code i’m showing you the process on CLI

We can’t use the webinstaller or a precompiled binary because we need to change GPIO ports

tar xzvf v1.5.0.tar.gz
cd v1.5.0/libs
unzip ../../
cd ..
edit platformio.ini
remove ; from
default_envs = nodemcuv2-ir
vi main/config_IR.h
search for LOLIN, edit and change into 0 (GPIO 0 = D3)

build and upload
pio run --target upload --upload-port /dev/ttyUSB0
build and upload with flash erase
pio run --target erase --target upload --upload-port /dev/ttyUSB0

clean the environment when needed
pio run -t clean

Now you will get a Access Point, connect and enter your Wifi network information and mqtt server.

When connected you will see the IR codes and if you installed mqtt support in home assistant it will see the mqtt topics.

I’ve copied a json output as was send by my IR remote.
Below an example using mosquitto_pub to send codes.

mosquitto_pub -t home/OpenMQTTGateway_ESP8266_IR/commands/MQTTtoIR -h mymqttserver -m '{
  "value": 1270235327,
  "protocol": 3,
  "bits": 32,
  "hex": "0x4BB640BF",
  "protocol_name": "NEC",
  "raw": "8908,4498,536,604,510,1700,532,604,512,604,510,1722,510,604,510,1700,534,1700,534,1702,532,606,510,1722,510,1700,534,604,512,1722,510,1722,510,604,512,604,510,1702,532,606,510,606,510,604,510,604,512,604,512,604,510,1722,510,606,510,1722,510,1702,532,1700,534,1722,512,1722,510,1700,534"

platformio commands

Why use platformio?
I know Arduino IDE is easier for starters.
Platformio is far more flexible, you can make projects with their own versions of libraries.
I like CLI, easier to do version control (git)

pip install -U platformio
pio upgrade
pio update

Some screenshots of my visual code platformio

Last weeks useful schematics

Last Updated or created 2023-03-25

While working on my game, i had to come up with some solutions i could not find an answer for on the internet.

I’m not going to post every little detail of my game on this blog, my main reason is sharing my experiences and solutions.


16 Switches on a Wemos Arduino. While push buttons are easier to connect, I needed ON/OFF switches.
Push buttons are easy, there is only one active, so 4 enable lines and 4 scan lines and you’re golden.
16 Switches can be enabled all at the same time.
So you need some extra components to get a good result (0-65535)

Above schematic works, you need 4x 1k Pull-up resistors and 16 diodes. I used 1N4007

CONTROLLING 24V using Arduino and a buck convertor

Next problem, i’m using some elevator buttons for a project. These have build-in leds but run at 24V.
I only have 5V from the Arduino.
Regular leds you can connect directly to the Arduino using a 220ohm resistor.

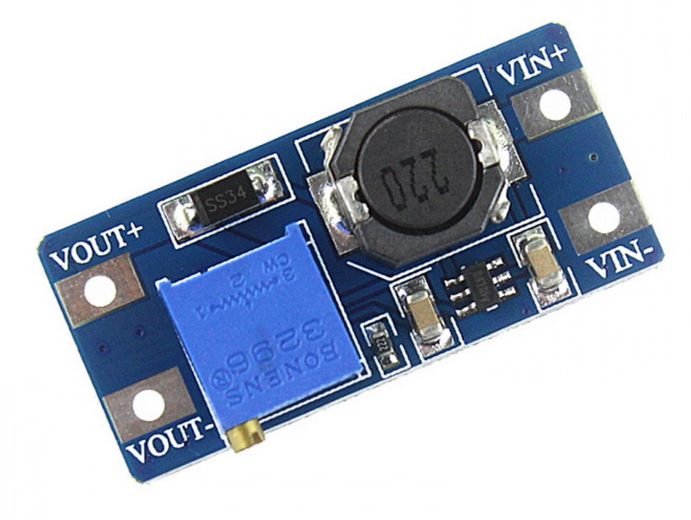

So i used a Buck-Step-Up-Convertor. This little module converts 5V to 24V. (You can control the output voltage using a variable resistor)
