New part demo (st7789 with micropython)

Last Updated or created 2024-01-31

(And some WIP)

A little starfield demo

followup on : https://www.henriaanstoot.nl/2024/01/26/raspberry-pico-with-st7789v2-display-3d-control/

Some other stuff

See links below

The smoking monitoring thingy is a new version of my (never posted) BBQ watch.

Folk instruments (other)

Last Updated or created 2024-02-22

I know/play and like Irish/Scottish/Celtic music.

Whenever I come across a musical instrument I want to try it.

But here are some others I like

Guzheng (Instrument)

Altai – Bai Terek (Band) – Throatsinging and Tovshuur instrument

Alexei Arkhipovskiy – Balalaika

Ney Flute (Egyptian)

Kyiv Ethno Trio – Overtone Flute (no fingerholes)

Largest flute (at the end)

Also cool (Flute with “drone”)

Didgeridoo

Jaw Harp (I’ve got one, but i’m not good at it)
also known as : Jew’s harp, mouth harp, Ozark harp, juice harp, murchunga, guimbarde, mungiga, vargan, trompe

Not an ancient instrument, but cool nevertheless.

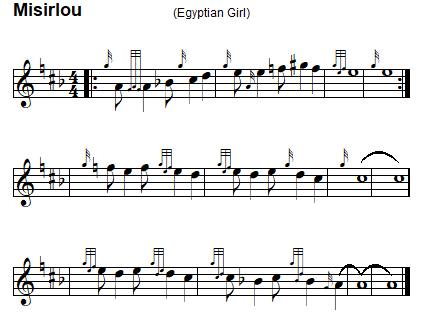

I play Misirlou on BorderPipes using accidentals, I’ll upload this soon.

Found a crappy recording of Misirlou on my Borderpipes.
C-sharp, B-flat, F-Natural and G-sharp as accidentals.
Hard to play on Great Highland Bagpipe without using a lot of tape. 🙂

Something I want to make myself : A talharpa.
https://en.wikipedia.org/wiki/Talharpa

A sausage fagott 🙂
https://en.wiktionary.org/wiki/Wurstfagott

My configs to set and get domoticz-433Mhz from Home Assistant

Last Updated or created 2024-01-31

I’ve posted about some integrations here:

There are three kinds of 433 connections I’m using:

  • Switches
  • Sensors (read-only)
  • Dimmers

Mqtt Home Assistant Config Yaml

Here are 3 mqtt examples using the Node-Red rewriter (see above post)

mqtt:
 light:
  - name: "KitchenOutside"
    payload_on: "99"
    payload_off: "0"
    unique_id: "KitchenOutside"
    brightness_scale: "99"
    brightness_state_topic: ha433/kitchenoutside/brightcontrolstate
    brightness_command_topic: ha433/kitchenoutside/brightcontrol
    state_topic: ha433/kitchenoutside/brightcontrolstate
    command_topic: ha433/kitchenoutside/control
    optimistic: false
    on_command_type: brightness
 binary_sensor:
  - name: "AtelierDoor"
    state_topic: "home2/3331/payload"
    value_template: "{{ value_json.nvalue }}"
    off_delay: 5
    payload_off: "0"
 sensor:
  - name: "LivingTemperature"
    state_topic: "home/9999/payload"
    unit_of_measurement: "°C"
    value_template: "{{ value_json.svalue1 }}"
  - name: "LivingHumidity"
    state_topic: "home/9999/payload"
    unit_of_measurement: "%"
    value_template: "{{ value_json.svalue2 }}"

Here is a virtual switch sensor using curl commands

command_line:
  - switch:
      name: PatioSlinger
      command_on: >
        curl "http://domoticz:pass@192.168.1.1:8080/json.htm?type=command&param=switchlight&idx=6&switchcmd=On"
      command_off: >
        curl "http://domoticz:pass@192.168.1.1:8080/json.htm?type=command&param=switchlight&idx=6&switchcmd=Off"
      command_state: >
        curl "http://domoticz:pass@192.168.1.1:8080/json.htm?type=command&param=getdevices&rid=6" | grep Status | cut -f4 -d\"
      value_template: >
#        "{{ value_json.result[0].Status }}"
        "{{ value_json.result[0].Status == 'On'}}"
      icon: >
        {% if value_json.result[0].Status == 'On' %} mdi:toggle-switch
        {% else %} mdi:toggle-switch-off
        {% endif %}
  - switch:
      name: DoorChimeManual
      command_on: >
        curl "http://domoticz:pass@192.168.1.1:8080/json.htm?type=command&param=switchlight&idx=9999&switchcmd=On"

Nodered mqtt payload rewriter for dimmer
Note: I still need to write the state part

Function code

var idx = 9999;
var bright = msg.payload;
msg.payload = {};
msg.payload = {"command": "switchlight", "idx": idx, "switchcmd": "Set Level", "level": bright};
return msg;

Adding a rotary encoder to Home Assistant to control dimmers using EspHome

Last Updated or created 2024-01-31

Config for mqtt-433 and home assistant entities.
Maybe I’ll add a display to select which dimmer to change.

ESPHome Config for direct communication to a MQTT enabled 443mhz dimmer.

When using GND to the rotary you have to use a pullup entry in your yaml

esphome:
  name: rotarywhite
  friendly_name: RotaryWhite

esp8266:
  board: esp01_1m

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx="

ota:
  password: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Rotarywhite Fallback Hotspot"
    password: "xxxxxxxxxxxxxxxxxxx"

captive_portal:

sensor:
  - platform: rotary_encoder
    name: "WhiteRotaryEncoder"
    id: rotvalue
    min_value: 0
    max_value: 50
    resolution: 1
    pin_a:
      number: GPIO0
      inverted: true
      mode:
        input: true
        pullup: true
    pin_b:
      number: GPIO2
      inverted: true
      mode:
        input: true
        pullup: true
    on_value:
      - mqtt.publish:
          topic: "ha433/Living5Spots/brightcontrol"
          payload: !lambda |-
              return to_string(id(rotvalue).state);
mqtt:
  discovery: false
  broker: 192.168.1.1
  port: 1883
  discovery_prefix: homeassistant

Config part to change Home Assistant entities.
WARNING YOU HAVE TO CHANGE RIGHTS!

Settings > Addons > EspHome > Configuration
(press configure to change service calls)

sensor:
  - platform: rotary_encoder
    name: "WhiteRotaryEncoder"
    id: rotvalue
    min_value: 0
    max_value: 50
    resolution: 1
    pin_a:
      number: GPIO0
      inverted: true
      mode:
        input: true
        pullup: true
    pin_b:
      number: GPIO2
      inverted: true
      mode:
        input: true
        pullup: true
    on_value:
      - homeassistant.service:
          service: light.turn_on
          data_template:
                entity_id: light.bedroomdimmer
                brightness: "{{ brightness_1 | int }}"
          variables:
              brightness_1: !lambda 'return id(rotvalue).state * 4;'

Raspberry Pico with st7789v2 display 3D control

Last Updated or created 2024-01-26

While ordering components for a mini C64 project I’m doing with my friend Bigred, I ordered a cheap ST7789-v2 display.

I want to make a generic pico gadget with a display, buttons and sound.
This to make a mini device for writing micropython demos.

The 3 tactical buttons are controlling the X,Y and Z axis of the rotating Cube.

Pinout:

PICODISPLAY
GP2Tactical switch (other side to 3v3)
GP3Tactical switch (other side to 3v3)
GP4Tactical switch (other side to 3v3)
GP9CS1
GNDGND
3v3VCC
GP18SCL (SPI clock)
GP19SDA (MOSI / SPI Data)
GP20RES (reset)
GP17DC (data command)
GP16BLK (backlight)

I know it says SCL/SDA (i2c) but it’s SPI controlled.

Used library : https://github.com/russhughes/st7789_mpy/tree/master

Some 3D explanation I drew a long time ago.

Using python you can use the Math funtions. (sin/cos)
Note: these are in radians!
print(math.sin(math.radians(30))) # 30 degrees

When using MachineCode you can use lookup tables.
These are generated tables which hold precalculated sin data for every degree.
You don’t have to use both cos and sin! (these are just 90 degrees shifted!)

Erik and I used a little basic program to generate an ASM include file like this

Costab LABEL BYTE
DB 0B4h,0B4h,0B4h,0B4h,0B4h,0B3h,0B3h,0B3h,0B2h,0B2h,0B1h,0B1h,0B0h,0AFh,0AFh
DB 0AEh
DB 0ADh,0ACh,0ABh,0AAh,0A9h,0A8h,0A7h,0A6h,0A5h,0A4h,0A2h,0A1h,0A0h,9Eh,9Dh,9Bh
DB 9Ah,98h,96h,95h,93h,91h,90h,8Eh,8Ch,8Ah,88h,86h,84h,82h,80h,7Eh
DB 7Ch,7Ah,78h,76h,74h,72h,70h,6Eh,6Ch,69h,67h,65h,63h,61h,5Eh,5Ch
DB 5Ah,58h,56h,53h,51h,4Fh,4Dh,4Bh,48h,46h,44h,42h,40h,3Eh,3Ch,3Ah
DB 38h,36h,34h,32h,30h,2Eh,2Ch,2Ah,28h,26h,24h,23h,21h,1Fh,1Eh,1Ch
DB 1Ah,19h,17h,16h,14h,13h,12h,10h,0Fh,0Eh,0Dh,0Ch,0Bh,0Ah,09h,08h
DB 07h,06h,05h,05h,04h,03h,03h,02h,02h,01h,01h,01h,00h,00h,00h,00h
DB 00h,00h,00h,00h,00h,01h,01h,01h,02h,02h,03h,03h,04h,05h,05h,06h
DB 07h,08h,09h,0Ah,0Bh,0Ch,0Dh,0Eh,0Fh,10h,12h,13h,14h,16h,17h,19h
DB 1Ah,1Ch,1Eh,1Fh,21h,23h,24h,26h,28h,2Ah,2Ch,2Eh,30h,32h,34h,36h
DB 38h,3Ah,3Ch,3Eh,40h,42h,44h,46h,48h,4Bh,4Dh,4Fh,51h,53h,56h,58h
DB 5Ah,5Ch,5Eh,61h,63h,65h,67h,69h,6Ch,6Eh,70h,72h,74h,76h,78h,7Ah
DB 7Ch,7Eh,80h,82h,84h,86h,88h,8Ah,8Ch,8Eh,90h,91h,93h,95h,96h,98h
DB 9Ah,9Bh,9Dh,9Eh,0A0h,0A1h,0A2h,0A4h,0A5h,0A6h,0A7h,0A8h,0A9h,0AAh,0ABh,0ACh
DB 0ADh,0AEh,0AFh,0AFh,0B0h,0B1h,0B1h,0B2h,0B2h,0B3h,0B3h,0B3h,0B4h,0B4h,0B4h
CosTabE LABEL BYTE


Basic:
0 DEF SEG = &H7000: c = 0
1 pi = 3.14159265#
2 FOR x = 0 TO 2 * pi STEP 2 * pi / 256
3 d = COS(x) * 127 + 127
4 POKE c, d: c = c + 1: NEXT

Most i learned from a book called “Art of Graphics”
(This is image of the book from the internet, i don’t think I still got my copy somewhere.

Home Assistant Speech and More

Last Updated or created 2024-01-22

I made my own Mqtt to speech thingy in the past.
Sending a text to a mqtt topic would be picked up by my domoticz raspberry and using a bash script the topic payload was converted to speech and being played on a connected speaker.

This speaker migrated to my Home Assistant NUC.
So i changed the speech engine.

Beside this migration, i’ve started using the HA voice assistant capabilities.
This was a major impact/project in 2023.

I’m not going to talk about configuring this .. There are many good YT tutorials and forum topics about this.

https://www.home-assistant.io/voice_control/thirteen-usd-voice-remote/

This is the device: a ESP32 pico, Microphone, leds and Speaker are being used for this sound assistant.
(It uses ESPHOME)

Back to the speaker being hooked-up to my HA NUC.

Install the addon PicoTTS (speech synthesis)

configuration.yaml

# Text to speech
tts:
  - platform: picotts
# My part
input_text:
  mqttspeech:
    name: mqttspeech
    initial: ""


Then install notified addon

Add a text field to your dashboard …

HLK-LD2410B with a Wemos Mini D1 (v4) connected to Home Assistant using ESPHome

Last Updated or created 2024-04-19

UPDATED: 20240419

LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hi-link. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and precise human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.

This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

There are 3 versions: Without Bluetooth, with Bluetooth (B version) and a C version which uses the standard pin distance.
The other ones are a pain in the *ss to solder!

Got a Bluetooth version? See end of post!

When searching for examples, I noticed that many had issues getting this working.
Let me be clear, it wasn’t working for me the first time.
Things i’ve learned:

  • Flash the first initial ESPHome using a USB cable, after that you can connect the module and flash OTA
  • Do not use the standard Uart RX/TX, it didn’t work for me. And messes-up the logging over USB (See baudrate: 0 to turn this off)
  • When connecting D7/D8 and this signal gets pulled down, the wemos won’t boot. (Running wifi connections gets interrupted)
    This is also a sign that RX/TX is switched around!
  • Measure and make sure you have a good, stable 5V power to your LD2410

Here is a post about the RCWL-0516, a similar project, but this one can’t measure distances and person detection won’t work when a person is not moving.

https://www.henriaanstoot.nl/2022/11/14/radar-module-rcwl-0516-with-mqtt/

Steps to take:

  • Flash ESPHome over USB
  • Detect and add using Home Assistant
  • Edit and upload code (below)
  • Connect the sensor

Wire it up like this:

20240419 image corrected

ESPHome YAML:

Parts i’ve changed:
board: Changed from esp-1?? to d1_mini
logger: baud_rate: 0
tx_pin and rx_pin

esphome:
  name: ld2410-1
  friendly_name: ld2410-1

esp8266:
  board: d1_mini

# Enable logging
logger:
  baud_rate: 0

# Enable Home Assistant API
api:
  encryption:
    key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx="

ota:
  password: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Ld2410-1 Fallback Hotspot"
    password: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

captive_portal:

ld2410:
  id: ld2410_radar

uart:
  tx_pin: GPIO15
  rx_pin: GPIO13
  baud_rate: 256000
  parity: NONE
  stop_bits: 1

number:
  - platform: ld2410
    timeout:
      name: Radar Timeout
    max_move_distance_gate:
      name: Radar Max Move Distance
    max_still_distance_gate:
      name: Radar Max Still Distance
    g0:
      move_threshold:
        name: g0 move threshold
      still_threshold:
        name: g0 still threshold
    g1:
      move_threshold:
        name: g1 move threshold
      still_threshold:
        name: g1 still threshold
    g2:
      move_threshold:
        name: g2 move threshold
      still_threshold:
        name: g2 still threshold
    g3:
      move_threshold:
        name: g3 move threshold
      still_threshold:
        name: g3 still threshold
    g4:
      move_threshold:
        name: g4 move threshold
      still_threshold:
        name: g4 still threshold
    g5:
      move_threshold:
        name: g5 move threshold
      still_threshold:
        name: g5 still threshold
    g6:
      move_threshold:
        name: g6 move threshold
      still_threshold:
        name: g6 still threshold
    g7:
      move_threshold:
        name: g7 move threshold
      still_threshold:
        name: g7 still threshold
    g8:
      move_threshold:
        name: g8 move threshold
      still_threshold:
        name: g8 still threshold

binary_sensor:
  - platform: ld2410
    has_target:
      name: Radar Target
      id: radar_has_target
    has_moving_target:
      name: Radar Moving Target
    has_still_target:
      name: Radar Still Target
button:
  - platform: ld2410
    factory_reset:
      name: "factory reset"
    restart:
      name: "restart"
    query_params:
      name: query params

sensor:
  - platform: ld2410
    moving_distance:
      name: Radar Moving Distance
      id: moving_distance
    still_distance:
      name: Radar Still Distance
      id: still_distance
    moving_energy:
      name: Radar Move Energy
    still_energy:
      name: Radar Still Energy
    detection_distance:
      name: Radar Detection Distance
      id: radar_detection_distance
    g0:
      move_energy:
        name: g0 move energy
      still_energy:
        name: g0 still energy
    g1:
      move_energy:
        name: g1 move energy
      still_energy:
        name: g1 still energy
    g2:
      move_energy:
        name: g2 move energy
      still_energy:
        name: g2 still energy
    g3:
      move_energy:
        name: g3 move energy
      still_energy:
        name: g3 still energy
    g4:
      move_energy:
        name: g4 move energy
      still_energy:
        name: g4 still energy
    g5:
      move_energy:
        name: g5 move energy
      still_energy:
        name: g5 still energy
    g6:
      move_energy:
        name: g6 move energy
      still_energy:
        name: g6 still energy
    g7:
      move_energy:
        name: g7 move energy
      still_energy:
        name: g7 still energy
    g8:
      move_energy:
        name: g8 move energy
      still_energy:
        name: g8 still energy

Bluetooth:

I’ve connected this HLK-DL2410B to Home Assistant before using Bluetooth. But I wanted to get them connected using Wifi.

You can install an App on your phone to connect to the sensor when powered on.
This way you can test the device, but also upgrade the firmware and make adjustments!

Just enable engineering mode and click more.

Testing another baud rate and upgrading the firmware:

Home Assistant ESPHome with toggle for interval

Last Updated or created 2024-01-14

Posted because I could not find a good example on the interwebs.

Below creates a virtual HA button which toggles a blinking led.
(button and variables are called eprint for another function, change to something meaningful. )

Home Assistant virtual mqtt switch (configuration.yml)

See switch part

mqtt:
 light:
  - name: "KitchenOutside"
    payload_on: "99"
    payload_off: "0"
    unique_id: "KitchenOutside"
    brightness_scale: "99"
    brightness_state_topic: ha433/kitchenoutside/brightcontrol
    brightness_command_topic: ha433/kitchenoutside/brightcontrol
    state_topic: ha433/kitchenoutside/brightcontrol
    command_topic: ha433/kitchenoutside/control
    optimistic: false
    on_command_type: brightness
#-----8<-------------snip ########### EXAMPLES light and sensor
 sensor:
  - name: "LivingTemperature"
    state_topic: "home/8461/payload"
    unit_of_measurement: "°C"
    value_template: "{{ value_json.svalue1 }}"
  - name: "LivingHumidity"
    state_topic: "home/8461/payload"
    unit_of_measurement: "%"
    value_template: "{{ value_json.svalue2 }}"
#--------8<--- snip ################################ ONLY PART BELOW NEEDED
 switch:
    unique_id: esphome_switch
    name: "Esp Home Switch"
    state_topic: "esphome/eprint/tmpstate"
    command_topic: "esphome/eprint/state"
    payload_on: "ON"
    payload_off: "OFF"
    state_on: "ON"
    state_off: "OFF"
    optimistic: false
    qos: 0
    retain: true

ESP Home config for a ESP32

esphome:
  name: lolin32litemqttled
  friendly_name: lolin32litemqttled

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx="

ota:
  password: "xxxxxxxxxxxxxxxxxxxxxxxx"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Lolin32Litemqttled"
    password: "xxxxxxxxxxxxxxxxxxx"

captive_portal:

switch:
  - platform: gpio
    pin:
      number: 22
      mode: output
    id: blueLED
  - platform: template
    name: "eprint"
    id: eprint_enable
    optimistic: on

interval:
  - interval: 1000ms
    then:
      if:
        condition:
          switch.is_on: eprint_enable
        then:
          - switch.toggle: blueLED

mqtt:
  broker: 192.168.1.2
  on_message:
  - topic: esphome/eprint/state
    qos: 0
    payload: "OFF"
    then:
      - switch.turn_off: eprint_enable
  - topic: esphome/eprint/state
    qos: 0
    payload: "ON"
    then:
      - switch.turn_off: eprint_enable

A “new” sound chip for 6502

Last Updated or created 2024-02-25

UPDATE: 20240225

I’ve written about General Instrument AY-3-8910 before, here is some work I did today.

This sound chip i wanted to implement in my amiga, and now it’s a alternative for my 6502 computer. ( As an alternative setup for the SID chip. )
Btw this is the same kind of chip used in the Atari ST.

A clean setup … I’ve got the sound chip and a Amplifier chip.

Above a Kicad drawing I made today, a little different from my design from the 90’s.

Below a movie clip I recorded today. Running a test setup using an Arduino nano and a sdcard reader.
The sound is bad, this is due to clipping and the absence of multiple resistors and capacitors.
Music is a register dump from a YM music file.
Amplifier is a bare LM386.

UPDATE: 20240225

I don’t like tying those three outputs together, and amplifying those.

So I’m going to use a LM324 i’ve got left from my 8085 interface, and make a 3-channel amplifier.

Something like this
