Morse with a ATTINY85

Last Updated or created 2022-07-17

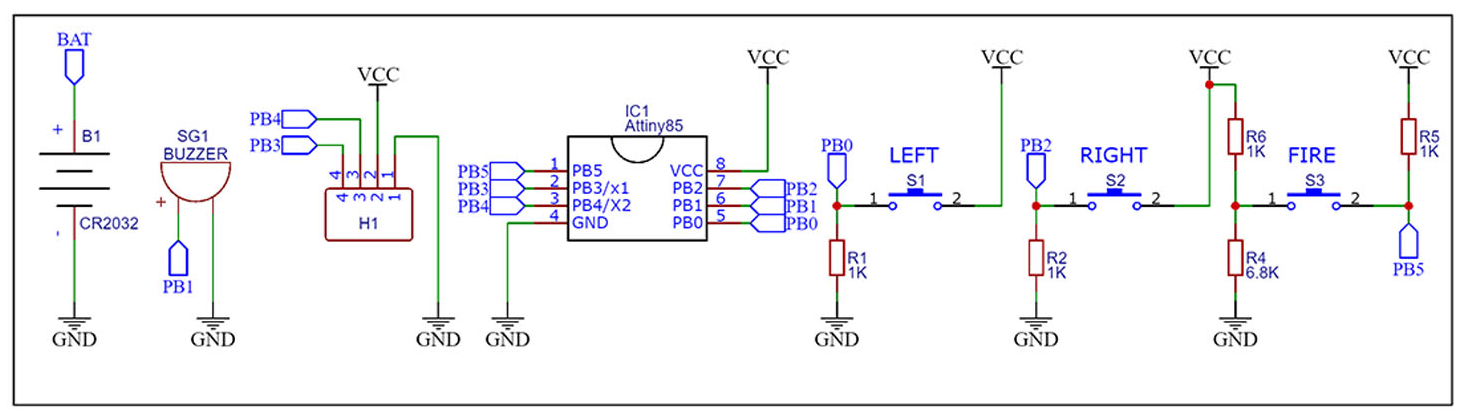

Using above schematic and attiny program you can make a mini morse trainer. It runs on a single CR2032!

I’ve got a attiny85 programmer as pictured below.

A Attiny85 chip is a 8 pin microcontroller, but with far less pin’s and its most of the times just a DIP/DIL (Dual in line)

When using the Arduino IDE:

  • Preferences : Add board url :
    https://raw.githubusercontent.com/damellis/attiny/ide-1.6.x-boards-manager/package_damellis_attiny_index.json
  • Set board info like: (NOTE PROGRAMMER USBasp)
  • Burn bootloader
  • After that compile and upload

Source code used: https://github.com/andyhighnumber/Attiny-Arduino-Games/tree/master/MorseAttinyArcade

I had to short JP2 to get the USBasp into slow burn mode, else the attiny85 could not be found

Hard to do without a propper morse key!

Whisky 2022 Scotland

Last Updated or created 2022-12-02

Dutch only

Instead of saying PPM is parts per million, i say Peats per minute!
Henri

3 – 26 Juni zijn we op vakantie geweest in Schotland. Daarbij hebben we met name de western isles bezocht.

Henri

Hieronder heb ik stukken uit ons logboek geplakt aangaande bezoeken aan whisky distillers.

Naast de vele distillers op Islay, hebben we nog wat andere bezocht op de andere eilanden.

Isle of Islay

7 Juni – Arran distiller (Isle of Arran)

Hier een fles whisky gekocht en een kiltpin (van beide kun je er nooit genoeg hebben)

8 Juni – Laphroaig, Ardbeg, Lagavullin distillers (Isle of Islay)

Na een ontbijt van 2 chokolade koekjes en een banaan, de eerste destileerderij Laphroaig bezocht. We zijn door het mini-museumpje gelopen met hierin een aantal informatieborden met hierop de geschiedenis van de distilleerderij. Vervolgens hebben we een taster genomen met 4 whisky’s. We hebben een andere taster in driver’s flesjes meegenomen, en de complimentary drink uit de festival fles.
Hier een boek over distillers gekocht.

Malt Whisky Yearbook 2022

Rond 13en kwamen we aan bij de Ardbeg destileerderij, 7km verderop. Ook hier zijn we eerst door het shopje gelopen. We hebben hier een CD en tunebook van Fraser Shaw gekocht. Vervolgens hebben we een broodje gehaald bij de foodtruck die buiten stond, en hebben we deze buiten opgegeten (gelukkig was het nog steeds droog). Ook hier hebben we weer een taster genomen van 5 whisky’s.

Daarna zijn we weer 1.5km terug gereden naar de Lagavulin destileerderij. Nadat we weer even in de souveniershop hadden rondgekeken (een Lagavulin petje gekocht) meldde we ons voor de rondleiding. Om 15.30 ging de rondleiding van start een heeft Beth ons een uurtje door de distillery heengeleidt. De rondleiding eindigde met een tasting met 3 whisky’s: de 8 jaar, de 16 jaar, en de Festival fles van dit jaar. We waren het er over eens dat we deze laatste wel een beetje scherp in smaak vonden. Coline kon haar 3 tasters meenemen in driver’s flesjes (Zij was deze dag de BOB) . Na de rondleiding zijn we nog even naar de resten van Dunyvaig Castle gelopen. Vanaf hier had je namelijk een mooi uitzicht op de Lagavulin distillery, opnieuw met de naam in grote zwarte letters op de witte muur van het warehouse. We hebben de ruine beklommen, waarbij we een groot gat moesten overbruggen.

Savonds nog even fotos gemaakt van de Bowmore destileerderij.

9 Juni – Bruichladdich, Kilchoman, Ardnahoe, Bunnahabhain distillers (Isle of Islay)

Rond 11en zijn we vervolgens naar de Bruichladdich distillery gereden. Hier hebben we een bezoekje gebracht aan de shop. We hebben een kleine (gratis) tasting gedaan met 3 whisky’s: de bruchladdie, de 10 year Port Charlotte, en de Octomore 5th edition. Het meisje achter de sampling bar was erg enthousiast en vertelde veel. Later hebben we ook nog de botanist gin geproefd. we hebben een fles octomore (208ppm), een flesje Octomore-BBQ saus, een fles botanist gin, en een T-shirt gekocht.

We zijn doorgereden naar de Kilchoman distillery. Hier kwamen we rond 14.15 aan. Het was inmiddels wel lunchtijd, dus we waren blij verrast dat ze hier een groot visitors centre hadden met een restaurant gedeelte. Terwijl we wachtte op een vrij tafeltje hebben we ook een tasting gedaan met een core range met 4 samplers.

Vervolgens moesten we een beetje aanmaken om op tijd voor de rondleiding bij de Ardnahoe distillery te zijn, het was namelijk 15.15 en het was minstens nog een half uur rijden terwijl we onze rondleiding om 16 van start zou gaan. Na ons aangemeld te hebben, hadden we zelfs nog even tijd om door het shopje heen te lopen. Om 16 uur ging onze tour van start. Ardnahoe is de jongste distillery op Islay en is pas sinds 2018 in werking. Dit betekende dat we wel een rondleiding door de werkende distillery konden krijgen, maar nog niet hun eigen whisky konden proeven. Na rondgeleid te zijn, waarbij de stills het meest indrukwekkend waren oa door de ruimte waarin ze stonden met een prachtig uitzicht richting Jura, konden we kiezen uit 4 flessen van welke we een dram wilde proeven, 1 van de 2 mystery blends of 1 van de 2 mystery malts. Henri nam de Hepburn’s choice (Auchroisk 9yr) die gematureerd was op rode wijnvaten, en Coline heeft de andere malt meegenomen in een driver’s flesje. Hier mochten we de tasting glaasjes meenemen. Nadat we onze tasters op hadden zijn we er snel vandoor gegaan om nog net voor sluitingstijd bij de Bunnahabhain distillery het shopje in te kunnen duiken.

Bunnahabhain lag zo’n 2 km verderop dus we kwamen even voor 17en aan, en we konden inderdaad nog net even het shopje inlopen. We waren te laat om daar ter plekke nog een tasting te doen, maar we hebben van 3 whisky’s een 3cl tasting flesje meegenomen en nog een T-shirt gekocht. Eenmaal buiten zijn we nog even het terrein opgelopen en de pier, zodat we ook hier nog even het witte warehouse met de naam Bunnahabhain in zwarte letters konden fotograferen.

We wilden eigenlijk ook nog even langs de Caol Ila distillery rijden om ook hier een foto te maken van het witte warehouse met de naam Caol Ila in zwarte letters, maar we wisten dat deze gesloten was voor onderhoud. Maar de weg ernaartoe was ook afgesloten. We hebben het geprobeerd, maar de weg ernaartoe lag ook echt open, dus dat ging ‘m helaas echt niet worden.

10 Juni – Bowmore, Port Ellen distillers (Isle of Islay)

Een bezoekje gebracht aan de distillery shopje, waar we ook weer een kleine tasting hebben gedaan met de 10yr old (deze was complimentary), en Henri heeft nog een dram genomen uit de fles van het Fèis ìle festival van dit jaar.

In Port Ellen zijn we nog even langs de Port Ellen distillery gereden, die ergens dit jaar ook weer heropend zou moeten worden. Maar toen we er langs reden was het duidelijk dat ze nog vol in de bouw fase zitten. Het frame stond, de tanks en de stills stonden er ook al in, maar voor de rest miste er nog veel. Wel leuk om zo te zien!

Vanaf de boot hadden we nog een mooi uitzicht op Port Ellen en de Port Ellen distillery, waardoor we ook hier het witte warehouse met de naam Port Ellen in zwarte letters hebben kunnen fotograferen

11 juni: Oban distiller (Scottish Mainland)

Vandaag de shop van de Oban distillery binnengelopen. Helaas konden we hier geen tasting doen.

12 juni: Tobemory distiller (Isle of Mull)

In Tobermory zijn we ook nog even naar de Tobermory distillery (Ledaig => is niet uit te spreken) te gaan. Hier konden we de 2 whisky’s proeven, de 12 jaar Tobermory (is unpeated) en de 10 jaar Ledaig (is wel peated). Deze laatste hebben we thuis staan. Henri besloot om een flesje van de andere te kopen, ter vergelijk ook straks thuis.

16 Juni – Ardnamurchan

Even in de shop gekeken, en een inieminie klein glaasje kunnen proeven, nog een flesje gekocht en wat foto’s maken.

20 Juni – North Uist Distillery (Benbecula),  Isle of Harris distillery (Isle of Harris

We hebben nog een korte stop gemaakt bij de North Uist Distillery, welke om 10 uur open zou gaan. Deze destilleerderij is nog maar net begonnen dus heeft nog geen Whisky, maar zoals zovele startende destillerderijen, mogen ze wel gin maken. Hier hebben we een bezoekje gebracht aan het shopje waar ze hun downpour gin verkochten (welke we bij de AirBnB van Isabel & Robert hadden geproefd). We hebben een fles gekocht (al was het vanwege de mooie fles)

Hier hebben we een bezoekje gebracht aan de Isle of Harris distillery. Ook hier zijn ze nog te jong om al een whisky te hebben gebotteld. Maar ook hier zijn ze begonnen met een gin, deze bevat sugar kelp als speciaal extra ingrediënt.

23 Juni – Abhainn Dearg Distillery (Isle of Lewis)

Het was een uurtje rijden naar de Abhainn Dearg distillery. Hier hadden we voor 11 uur een rondleiding geboekt; we kwamen netjes 10 voor 11 aan. Dit was een zeer kleinschalige craft distilleerderij op een soort boerderij. Terwijl we over het erf liepen werden we gewezen op het schuurtje waar we moesten zijn. De tour begon bij de mouterij, en toen naar de ruimte met de stills. Hier bleek het dat de distillery al geruime tijd (18 maanden) uit of business was doordat de wash stills lek waren en vervangen moesten worden, wat mede door corona erg veel vertraging opliep. Naar de toer, ging we terug naar de ruimte waar we gestart waren waar we elk 2 whiskies mochten proeven. Samen konden we ze alle 4 proeven: hun 10 jaar whisky of bourbon vatten gerijpt, en de 3 cask strengths op 3 verschillende vaten gerijpt (dessertwijn, sherry, en een roja rode wijn). Uiteindelijk hebben we nog een flesje van de 10 jaar meegenomen. En om 12 uur zijn we weer in de auto gesprongen. Dit was een leuke andere distiller, één waarbij mensen het niet zo nauw namen met hoe ze de whisky maken. Spinnenwebben, koper buisjes beetje aan elkaar gesoldeerd.  Doffe stills die niet mooi rond waren, maar een cilinder met wat smalle buisjes. Whatever gets the job done.

24 Juni Edradour, Blair Atholl Distillery (Mainland)

Omdat we toch via Pitlochry naar het zuiden gingen, maar even lans de woonplaats van de helaas te vroeg overleden held van ons Gordon Duncan.
Hier ligt het kleinste destillery van Scotland Edradour, maar deze is ‘temporarily closed’
Vanwege tijdgebrek van Blair Atholl alleen maar een foto gemaakt.

Restricted Content
To view this protected content, enter the password below:

HuskyLens Test

Last Updated or created 2022-06-30

I’ve bought a Husky lens recently. It was very cheap for what you get.
(50 Euro’s)
The first tests are promising.

Nice little, but powerful gadget.
https://wiki.dfrobot.com/HUSKYLENS_V1.0_SKU_SEN0305_SEN0336

Cables to connect Rpi or Arduino, mounts, Huskylens and Protectioncover (sold separately)
  • face recognition
  • object tracking
  • object recognition
  • line tracking
  • color recognition
  • tag recognition
  • object classification

Communication can be done via I2C and Uart.
Uses a sdcard to store learning data.
Has white leds for object lighting.

Build-in objects which are recognised out of the box. (Others can be learned by the device)

aeroplane, bicycle, bird, boat, bottle, bus, car, cat, chair, cow, dining-table, dog, horse, motorbike, person, potted plant, sheep, sofa, train, TV

Bought some tunebooks in Scotland

Last Updated or created 2023-07-18

While visiting the Ardbeg dristiller on Isle of Islay, i notished a tunebook with CD in the whiskyshop. Tunes for multiple instruments and pipe settings .. interesting! Fraser Shaw, didn’t know who he was. The tunes in the book looked interesting. I bought both .. we will see.

While reading more about him, i learned he was a driving force on the islands when it comes to folk music. Sadly he died by a illness .. far to soon. While on holiday we drove by some places he was know to play.
Tunes for whistle with guitar chords and pipe settings. Some tunes are in a complex time measure. I lost the CD but it is on spotify .. favourites: £50 Cashback and Air Chall

While visiting the Kildonan Museum in South Uist, i found a tunebook which was compiled of tunes from a piper named: Calum Campbell.

This oldskool piper wrote some amazing tunes. The book was made after he, his daughter and her two children lost their lives in a heavy storm in 2005.
2005 Was a bad year .. we lost John D Burgess, Martyn Bennett and Gordon Duncan the same year.

On our way home we visited the Morpeth Chantry Bagpipe Museum.

Most of the pipes here where Northumbrian bagpipes and some borderpipes ( even a shuttlepipe )

Our Northumbrian pipes

In the touristy shop i found these books, amoung others.

Last two are Duets/Trios also for different instruments .. nice!

English humour

Last Updated or created 2022-08-06

One of my first encounters with English Humour was when my wonderful teacher Mrs Walraven rolled in the old VCR-on-cart when i was going to technical secondary school (MTS)

She showed us Monty Python, Faulty Towers and Black Adder. THIS is the humour i like, this is for me!

So from that point on i wanted to see English Humour.

There are standup comedians i like, Billy Connolly (seen him live), Eddie Izzard (seen him live), Michael McIntyre and Jimmy Carr (tickets!!!) to name a few.
Life stories, wierd confronting idea’s and realisations of things , Real life observations and Dark humour. (in that order)

Billy Connolly 2016

But i wanted to tell about TV shows (i try to place them in order):

Monty Python
One of the first things i saw, great stuff. Liked the movies also.

Black Adder
Loved the way it was the character Rowan Atkinson played got smarter every ‘season’, and Tony Robinson (Baldrick) was getting dumber.
The last ‘season’ WWI was when all things where exactly right.
(Yearly rewatch)

Not the nine o’clock news
This one i need to review

The Young Ones
A series that broke boundaries like Monty Python.
First time i notished the perfect duo, Rik Mayall and Ade Edmonson

Fawlty Towers
To few episodes, but each a brilliant piece of work.
Superb characters! (Yearly rewatch)

Red dwarf
Great stuff, loved the characters. And the space setting

Mr Bean
Great (silent) performance of Rowan Atkinson.
Liked his One man show more i think.

Bottom
Then i learned about Bottom. It was the genius jokes and performances.
The 5 liveshows where even more amazing. (Yearly rewatch)
Also i have to mention the movie : Guest House Paradiso

So i went looking for more:

Filthy Rich & Catflap
Secret Policeman’s Ball
(not really a TV series)

Then i came across a oldie …

At last the 1948 show
A predecessor of Monty Python with Marty Feldman

Do not adjust your set
Also with guys who did Monty Python later on.

Today i was in Uist on holiday in Scotland, talking about these show.
The B&B owner said “Do you know – Ripping Yarns???”
So that’s the next to find and view!

Others i have to mention:
Alas Smith and Jones
The Bleak Old Shop of Stuff
Allo allo


The location where the bench was from the intro of Bottom the TV series. Now a plaque is there, which reads: “Rik Mayall. 1958-2014. Punched his friend in the balls on a bench near this spot.”

Photo timelapse slider fixed

Last Updated or created 2022-06-29

I got my DIY timelapse slider out of storage, and notished it wasn’t working any more.
I’t was a quick and dirty build, using minimal components and could be build with minimal effort.
We could not take a lot of stuff with us to New Zealand.
Camera and powerbanks, those we always take with us. So i only needed:

  • Raspberry Pi
  • Steppermotor and a plastic sheet where it was mounted on (using tiewraps you can undo)
  • Timingbeld
  • Two metal feet it was mounted on

It had to be build strong enough to hold a Nikon 750, and didn’t get out of balance when moving the camera on two metal tubes i bought in NZ.

The RPI would not start anymore, just a red power smd led. SO it didn’t boot.
Taking the mini sdcard out of the raspberry trying to put it in my cardreader .. note the trying part.
The damn thing broke into two parts, never seen anything like it.
Damn, did i backup the latest version? No, i used my mobile and wifi in NZ to modify the scripts.
Well .. “We can rebuild him, we have the technology”

How does it work?

Stepper motors move my camera over two metal rods, with ball bearing wheels.
The raspberry controls my nikon using a usb cable. Mounted on the raspberry is a steppermotor hat (adafruit) which can control DC motors and stepper motors. ( In this project i used only one stepper )
The stepper motor carries the platform containing itself, a raspberry and my nikon over the “rails”
Two switches on each side sends a signal to the program to stop.
All timing are set via the Webgui.

Steps

  • At reboot, python script wil be started
  • Moving platform to the left, until switch detects the edge
  • Waiting for in structions
  • Entering for example timer 30, speed 10 and r
  • Platform wil move distance 10 to the right
  • Wait 30 seconds
  • Grab a picture
  • And loops until end of rod reached, then it wil move to left again.

Notes:

  • Gphoto works with other camera’s also
  • When placing the camera on the platform, focus once. Disable autofocus, also put your camera in manual mode, setting Apeture, ISO and shutterspeed same as your test photo. (bear in mind: when doing sundown shots maybe start with a little light over compensation)

Below old 2018 version

New Sdcard. Format, put lite on this

# install gphoto2
apt-get install photo2
# connect nikon with usb, capture test with
gphoto2 --capture-image-and-download --interval 5
# Next steppers
apt-get install python3-pip
pip3 install adafruit-circuitpython-motorkit
# enable I2C
raspi-config -> enable i2c
reboot

# Test python script
import time
import board
from adafruit_motorkit import MotorKit

kit = MotorKit(i2c=board.I2C())

for i in range(100):
    kit.stepper1.onestep()
    time.sleep(0.01)

# Create a API
apt-get install python3-flask python3-flaskext.wtf

I’m using my phone in Hotspot mode, Timelapser will connect to my phone.
Open a browser and enter : http://<ip of timelapser>:8080/form

timer in seconds to shoot pictures
speed is the movement on the rail
go = r(ight) or l(eft)
go + timer 0, move until you reach the end (switch detect)

Todo: Need to change CSS to mobile responsive gui .. like my quizzer

import time
import subprocess
from flask import Flask, jsonify
from multiprocessing import Process, Value
from flask_wtf import FlaskForm
from wtforms import StringField, PasswordField, BooleanField, SubmitField, TextAreaField
from wtforms.validators import DataRequired
from flask import Flask, render_template, request
from flask import render_template
import board
from adafruit_motor import stepper
from adafruit_motorkit import MotorKit
import RPi.GPIO as GPIO
import os; myenv = os.environ.copy(); myenv["LANG"] = "C"


# NOTE:
# timer = seconds between shots
# speed = distance stepper travel

# Using gpio pins to detect max left/right with switches
# BCM Numbering
GPIO.setmode(GPIO.BCM)
# pullup to 17 &amp; 18
GPIO.setup(17, GPIO.IN, pull_up_down=GPIO.PUD_UP)
GPIO.setup(18, GPIO.IN, pull_up_down=GPIO.PUD_UP)

# Stepper HAT is i2c
kit = MotorKit(i2c=board.I2C())

kit.stepper1.release()

global timer
global speed
timer=0
speed=0
go="nix"

app = Flask(__name__)
app.config['SECRET_KEY'] = 'you-will-never-guess'

class FormForm(FlaskForm):
    timer = StringField('timer', validators=[DataRequired()])
    speed = StringField('speed', validators=[DataRequired()])
    go = StringField('go', validators=[DataRequired()])
    submit = SubmitField('Send control')

# Make below in something like : nikon record .. slowly 10s to the right and recording stop?
# Or bounch left/right using gpio sensors
@app.route("/control/&lt;time&gt;/&lt;speed&gt;")
def action(number, message):

    time.sleep(1)

# Print form on: http://&lt;IP&gt;:8080/form = start page
@app.route("/form")
def form():
    form = FormForm()
    return render_template('web.html', title='Web slide control', form=form)


# process form
@app.route('/data', methods = ['POST', 'GET'])
def data():
    if request.method == 'GET':
        return "The URL /data is accessed directly. Try going to '/form' to submit form"
    if request.method == 'POST':

        timer = request.form['timer']
        speed = request.form['speed']
        go = request.form['go']
        timer = int(timer)
        speed = int(speed)
        if timer == 0:
            print("Turn off")
            p = Process(target=record_loop, args=(False,speed,timer,go))
            p.start()
            if str(go) == "l":
               while GPIO.input(17) == True:
                kit.stepper1.onestep(direction=stepper.FORWARD)
                time.sleep(0.01)
            if str(go) == "r":
               while GPIO.input(18) == True:
                kit.stepper1.onestep(direction=stepper.BACKWARD, style=stepper.DOUBLE)
                time.sleep(0.01)

        else:
            print("Turn on")
            p = Process(target=record_loop, args=(True,speed,timer,go))
            p.start()
# print form again
        form = FormForm()
        return render_template('web.html', title='Web slide control', form=form)


# main loop, controls stepper and camera
def record_loop(loop_on,myspeed,mytimer,mygo):
   while True:
      if loop_on == True:
# test if switch hit yet, else move
         print('timer' + str(mytimer))
         print('speed' + str(myspeed))
         time.sleep(2)
         if str(mygo) == "l":
             if GPIO.input(17):
                print("Pin 17 is HIGH")
                for i in range(myspeed):
                        kit.stepper1.onestep(direction=stepper.FORWARD, style=stepper.DOUBLE)
                        time.sleep(0.01)
                kit.stepper1.release()
             else:
                print("Pin 17 is LOW")
         if str(mygo) == "r":
             if GPIO.input(18):
                print("Pin 18 is HIGH")
                for i in range(myspeed):
                        kit.stepper1.onestep(direction=stepper.BACKWARD, style=stepper.DOUBLE)
                        time.sleep(0.01)
                kit.stepper1.release()
             else:
                print("Pin 18 is LOW")
         time.sleep(mytimer)
         subprocess.run(['/root/mycapture'])
         subprocess.Popen([
        "gphoto2",
        "--capture-image"],stdout=subprocess.PIPE)

# Main loop
if __name__ == "__main__":
   while GPIO.input(17) == True:
         kit.stepper1.onestep(direction=stepper.FORWARD, style=stepper.DOUBLE)
         time.sleep(0.01)
   kit.stepper1.release()
   p = Process(target=record_loop, args=(False,0,0,go))
   p.start()
   app.run(host='0.0.0.0', port=8080, debug=False)
   p.join()
Other files
cat templates/web.html
{% block content %}
    <h1>Slide control</h1>
	    <form action="/data" method = "POST">

        {{ form.hidden_tag() }}
        <p>
            {{ form.timer.label }}<br>
            {{ form.timer(size=32) }}
        </p>
        <p>
            {{ form.speed.label }}<br>
            {{ form.speed(size=32) }}
        </p>
        <p>
            {{ form.speed.go }}<br>
            {{ form.go(size=32) }}
        </p>
        <p>{{ form.submit() }}</p>
    </form>
{% endblock %}

gphoto running from cron/python is a b*tch, had to rewrite subprocess and running from screen

Start screen @reboot, just crontab -e
# crontab entry
@reboot screen -dmS slide /usr/bin/python3 /root/control.py
RPI with Stepper Hat and two Limit switches and a stepper motor
Datasheet showing me which colors are what
