My tank mouse died .. beyond repair. Blue 9pins to ps2 works great!
A switchless (using key combination) diskdrive switcher df0<>df1
I used to make a floppy switch myself in the past, i used a wirewrap socket, and a cross switch. Made a hole in the back, with the little switch. This one does not need a hole in your case for the switch.
Own floppy switch

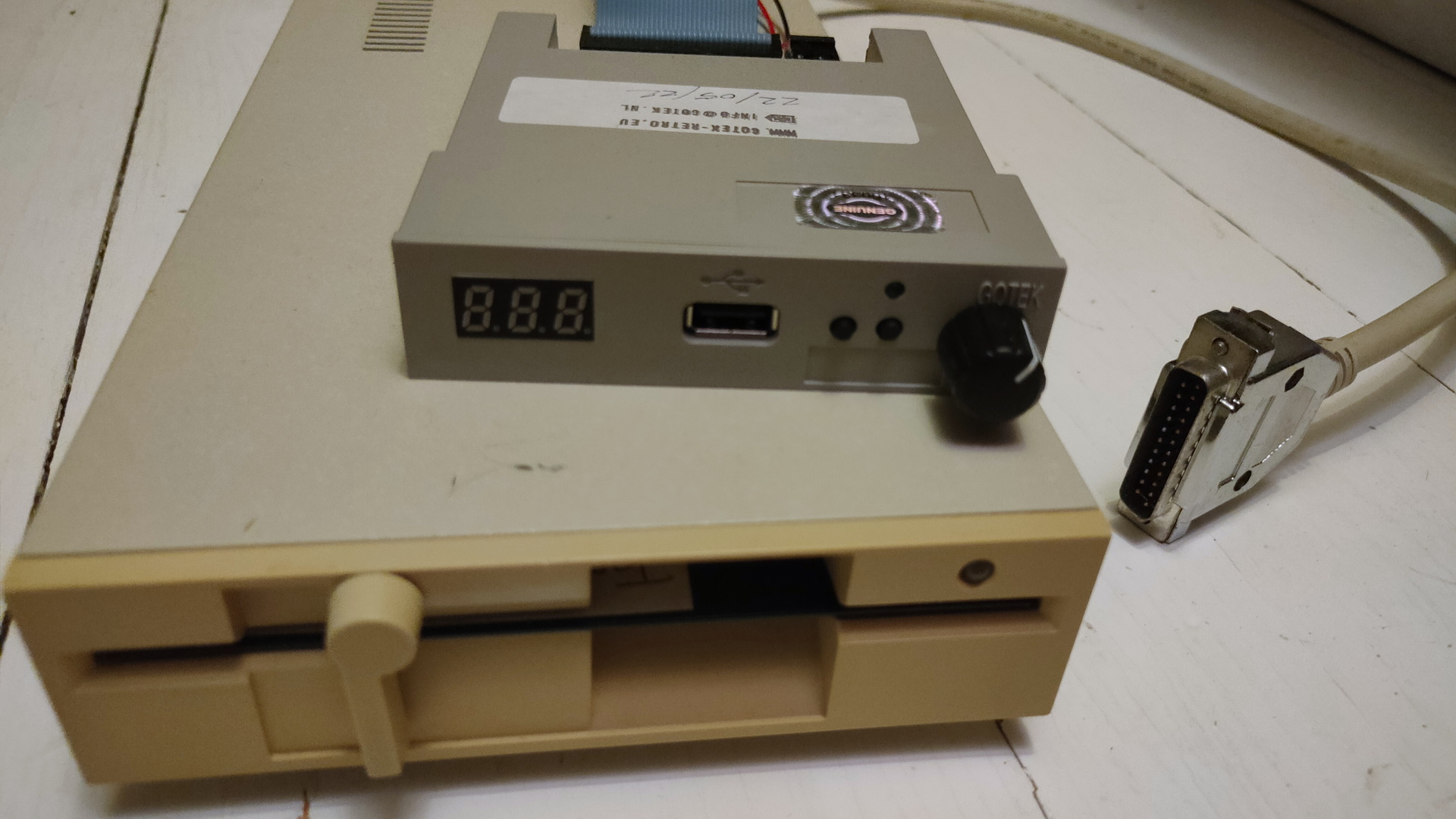

Gotek Floppydrive Emulator with Rotary Encoder
Gotek drive ontop of my 5.25″ drive with adaptorDisplay and usbstick port
This drive supports a lot of disk formats and systems, i will have to look into that .. https://github.com/keirf/FlashFloppy/wiki/Host-Platforms
One Vic-20 working ( switched some keyboards and chips around )
Something i made in 1984? .. then the fuse in my vic-20 power blew (250v 160mA)
Another Vic-20 – with a Bad U31 (Oscillator)? or Vic video chip?
Left Vic-20 with buildin power convertor, right more common version.C64 C with a broken color-ram OR U29 74LS74 chipVic Graf Cartridge, graph a function with annoying sound
When running scripts which take a long time, i don’t want to wait for things to finish before i can start the next one.
For example, using my dedup script or compiling stuff. I wanna know when it is finished.
So i made some scripts
Maybe you can hear the spoken text in the background playing downstairs
I’ve put a function in .bashrc, so i can use a command like notify “Compiling is ready” A command like this i can put at the end of a command or in a script file at the end. make && make install && notify “compile ready”
What does it do when executed?
Send a mqtt message to the broker
Node-red will read this message and:
Send a message to my display on my desk – Sound and message notification. (See another post how i made this )
Send a message to a script on my Domoticz instance downstairs.
This will use a script to get a speech file from google, and play this on some small speakers in my livingroom
Send a pushover message to my phone
Display a message on my TV ( not in code below )
How?
At the end of your .bashrc
function notify() {
if [ -z "$1" ]; then
echo "Usage: $0 \"message\"";
exit 1;
fi
mosquitto_pub -h 10.1.0.17 -t notify/bashscript -m "$1"
}
This script will look for a cached audiofile with requested text, and uses that. Else it wil request a audio file from google, caches it and plays it though the speakers.
#!/bin/bash
INPUT=$*
input2=$(echo $INPUT | base64)
echo "$input2 = $INPUT" >> /home/pi/cache/files-text-relation
if [ -f /home/pi/cache/$input2.mp3 ] ; then
mpg123 -q /home/pi/cache/$input2.mp3 1>/dev/null 2>/dev/null
else
echo not cached
STRINGNUM=0
ary=($INPUT)
for key in "${!ary[@]}"
do
SHORTTMP[$STRINGNUM]="${SHORTTMP[$STRINGNUM]} ${ary[$key]}"
LENGTH=$(echo ${#SHORTTMP[$STRINGNUM]})
#echo "word:$key, ${ary[$key]}"
#echo "adding to: $STRINGNUM"
if [[ "$LENGTH" -lt "100" ]]; then
#echo starting new line
SHORT[$STRINGNUM]=${SHORTTMP[$STRINGNUM]}
else
STRINGNUM=$(($STRINGNUM+1))
SHORTTMP[$STRINGNUM]="${ary[$key]}"
SHORT[$STRINGNUM]="${ary[$key]}"
fi
done
for key in "${!SHORT[@]}"
do
echo "Playing line: $(($key+1)) of $(($STRINGNUM+1))"
NEXTURL=$(echo ${SHORT[$key]} | xxd -plain | tr -d '\n' | sed 's/\(..\)/%\1/g')
echo $NEXTURL
mpg123 -w $input2 -q "http://translate.google.com/translate_tts?ie=UTF-8&client=tw-ob&q=$NEXTURL&tl=En-us"
ffmpeg -i $input2 -codec:a libmp3lame -qscale:a 2 /home/pi/cache/$input2.mp3
mpg123 /home/pi/cache/$input2.mp3
done
fi
Added custom fields to Phpipam, so i can remove my port sheet and administer everything in Phpipam. And to prepare for a Augmented reality project i want to create.
Howto add fields: Go to the administrator menu on the right. Select IP related management > Custom fields Custom IP addresses fields press the plus sign Give it a name and description. I’m using varchar(10) at the moment so i can enter switchname:port (media:4)
See below for a example: Using a QR code and the information, i want to display port information using a app.
Sorting out my fileserver, i had the need for a deduplication script. Many files i’ve been copying from backup, clouds mobile devices and workstation. Inevitable to get many copies.
Below script walks a directory, using locate it tries to find files with same name. Using a md5sum it wil check if it is the same file, when found a simular file it stops searching, removes the one from the check-directory and checks the next one.
#!/bin/bash
# Copy this script to your to clean directory,
# when you got a copy on your fileserver from this script
# then the copy in your clean dir will be removed also.
# Dont want that? change
# find -type f |
# into
# find -type f | grep -v <nameofthisscript> |
# dont is current directory, skip these from locations
dont=$(pwd)
# Never start in /mnt ? uncomment below
# echo "$dont" | grep "^/mnt" && ( echo "start in tank" ; exit )
find -type f | while read file ; do
filemd5=$(md5sum "$file" | cut -f1 -d" ")
basenamefile=$(basename "$file")
echo "searching $basenamefile"
locate -i "/$basenamefile" | grep -v "$dont" | while read location ; do
if [ -f "$location" ] ; then
locatedfilemd5sum=$(md5sum "$location" | cut -f1 -d" ")
if [ "$filemd5" == "$locatedfilemd5sum" ] ; then
echo "found same md5sum at $location"
rm "$file"
break
fi
fi
done
done
# Remove empty dirs?
# find . -type d -empty -delete
Locate can be slow, sometimes it is better to put the locate DB in memory of on another fast storage system.
I’ve been using this for a while now, and i’m really impressed by it. It just connects to the Serial Din of your C64, draws power from the Cassette port. … And even looks like a mini drive!
I’ve been converting Disks to images as well as runnig previously converted D64 images on a real C64 again.
Also the internet provides loads of images to run again.
Converting and running:
For real floppy to image i used a empty image file. Made my real original drive device number 9, and used Dracopy (also below)
Image running on your real C64, just put a D64 disk image on your SDcard.
There is a disk selector and run program you can use. (See below) Also you can use the buttons for disk swap/change.
